Application:
Automatic bottle mayonnaise filling machine from QUALIPAK can fill up to 16 containers at the same time with virtually any liquid product, from thin and foamy to thick and stringy. It is recommended for a wide variety of products including mayonnaise, ketchup, oil, yogurt, cream, tomato sauce, hot sauce, chili sauce, honey, etc.
Examples: Mayonnaise, ketchup, oil, yogurt, cream, tomato sauce, hot sauce, chili sauce, honey, etc.
Packaging Type: Barrel, Bottles, Cans, Capsule, Cartons, Stand-up Pouch
Packaging Material: Glass, Metal, Paper, Plastic, Wood, Other
Kindly Reminder:
We have an experienced team of R & D engineers who can customize packaging solutions according to your product characteristics.
Packaging Samples
Machine Parameters:
| Filling Volume | 100ml-1000ml 250ml-2500ml 500ml-3000ml 500ml-5000ml | |||||
| Filling Material | Mayonnaise, ketchup, oil, yogurt, cream, tomato sauce, hot sauce, chili sauce, honey, etc. | |||||
| Filling nozzle | 2 | 4 | 6 | 8 | 10 | 12 |
| Capacity（B/H) | 800-1000 | 1500-1800 | 1800-2500 | 2500-3000 | 3000-3600 | 3600-4200 |
| Filling Precision | Less Than 0.5% | |||||
| Power supply | 220V Single phase 50HZ 380V Three phase 50HZ | |||||
Main Configuration:
Mesa, around the side plates are of high quality 304 stainless steel or other FDA approval of material production, and material contact parts for 316L quality stainless steel.
| Automatic Servo Filling Machine | ||||
| No. | Descriptions | BRAND | ITEM | Remark (made in China) |
| 1 | Servo Motor | Panasonic | 0.45KW | Japan |
| 2 | Reducer | Fenghua | ATF1205-15 | Taiwan |
| 3 | Conveyor Motor | ZhenYu | YZ2-8024 | China |
| 4 | servo drivers | Panasonic | LXM 23DU15M3X | Japan |
| 5 | PLC | Siemens | TM218LDALCODR4PHN | German |
| 6 | Touch Screen | Siemens | HMZGXU3500 | German |
| 7 | Frequency Converter | Danfoss | ATV12H075M2 | |
| 8 | Photo electricity of Inspect bottle | OPTEX or equal brand | BRF-N | Japan |
| 9 | Pneumatic Element | Airtac | Taiwan | |
| 10 | Rotary Valve | F07/F05 | No Need for Oil | |
| 11 | Pneumatic actuator | F07/F05 | No Need for Oil | |
| 12 | Low-Voltage Apparatus | Schneider | FRANCE | |
| 13 | proximity switch | ROKO | SC1204-N | Taiwan |
| 14 | Bearing | China | ||
| 15 | Lead Screw | TBI | Taiwan | |
| 16 | Butterfly valve | CHZNA | China | |

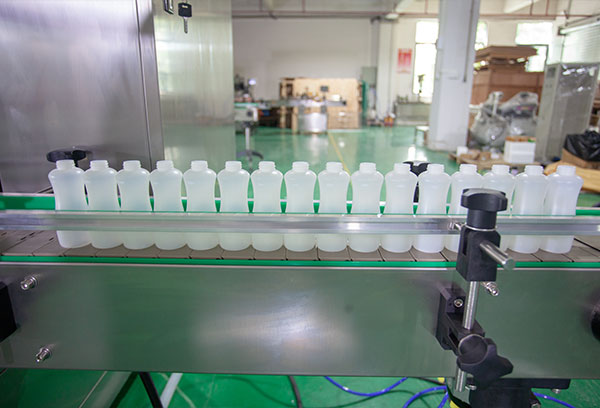

Bottle Filling Machine is adjustable for many different types of bottles
Easy to maintain, no special tools are required.
No bottle, no filling, automatic PLC control.

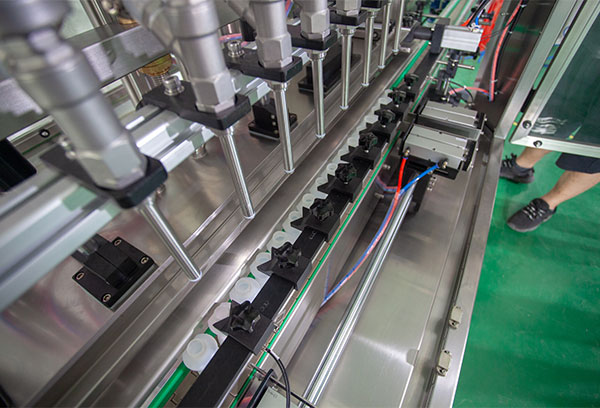

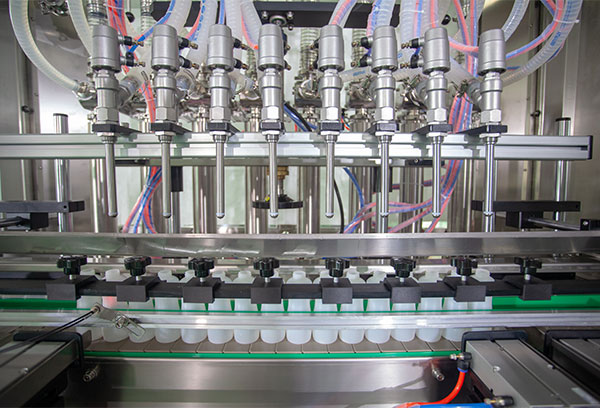

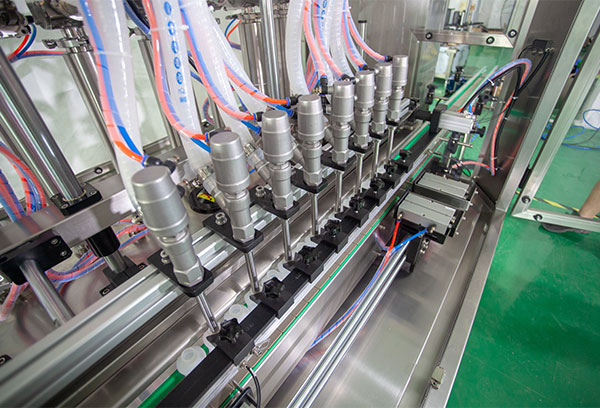

Filling nozzles are anti-drops, silk, and auto-cut viscous liquid.
Perfect filling precision: Less than 0.5%.
Special seals or hoses are adapted if the liquid is corrosive.
Diving nozzles for bottom-up filling of foaming products if needed.
An automatic bottle mayonnaise filling machine is a type of equipment used in the food and beverage industry for filling and packaging mayonnaise into bottles. The machine operates using an automated system that can fill a large number of bottles in a short period.
The machine’s filling system is designed to accurately dispense the right amount of mayonnaise into each bottle, ensuring consistent and precise measurements. The bottles are then sealed using a capping mechanism that can apply different types of caps depending on the desired packaging.
The automatic bottle mayonnaise filling machine is designed to be user-friendly and easy to operate, with minimal operator intervention required. The machine is equipped with a touch screen interface that enables the operator to control and monitor the entire filling process.
One of the key advantages of using an automatic bottle mayonnaise filling machine is its high level of efficiency. The machine can fill and package a large number of bottles in a short period, increasing production output and reducing labor costs.
Additionally, the machine’s self-cleaning system makes it easy to maintain and sanitize, reducing the risk of contamination and ensuring product quality and safety. The machine is also versatile, allowing it to fill and package different sizes and types of bottles, making it suitable for different types of products.
In summary, an automatic bottle mayonnaise filling machine is a highly efficient and versatile piece of equipment that can increase production output and reduce labor costs. Its automated system ensures consistent and precise measurements, while its self-cleaning feature ensures product quality and safety.
