Application:
Automatic follow-up type high-speed filling machine is suitable for filling liquid pastes in medicine, food, daily chemicals, pesticides, and fine chemicals.
Examples: Such as Cosmetics, laundry detergent, shampoo, shower gel, hand soap, sauce, lubricating oil, etc.
Packaging Type: It is suitable for bottles with different shapes, heights, and capacities. It only takes a few minutes to complete the debugging
Packaging Material: Glass, Metal, Paper, Plastic, Wood, And Others
Kindly Reminder:
We have an experienced team of R & D engineers who can customize packaging solutions according to your product characteristics.
Packaging Samples:
How It Works:

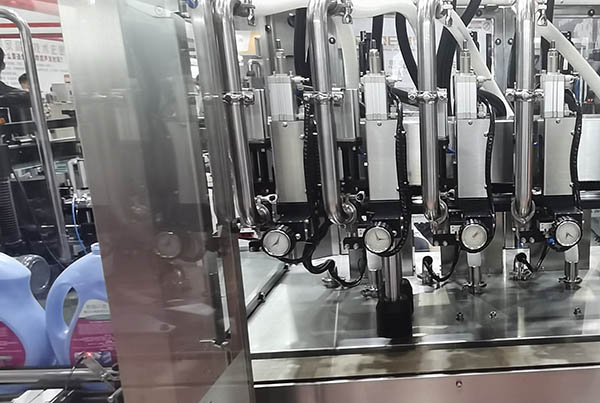

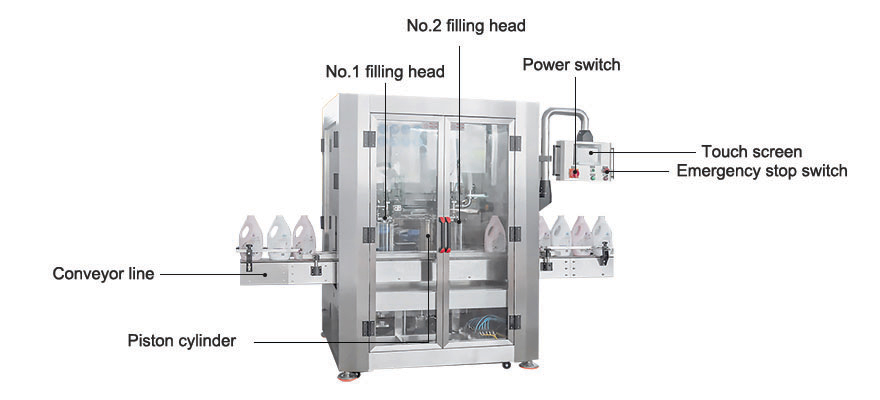

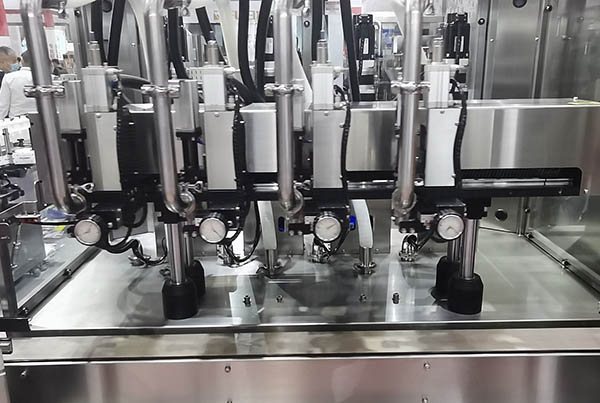

At the filling station of the filling machine, since the bottle body is continuously transported forward, the tracking filling component requires four functional actions, namely, tracking down insertion into the bottle mouth, tracking filling, rapid ascent, and rapid return. The functional actions can be decomposed into horizontal tracking movement and vertical lifting movement, and the four functional actions constitute a movement cycle.
| Filling Capacity(ML) | 100-1000ml (customizable) |
| Speed(BPM) | 30-38Bottles/minute (decided according to the filling volume and materials) |
| Power Supply(VAC) | 380V/50HZ |
| Motor Power(KW) | 3.0 |
| Air Consumption(MIN) | 4KGS×30LITER |
| Dimensions | 2000*1400*1900mm |
| Weight(KG) | 580 |
A. Efficient filling
1. Follow-up high-speed filling machine, using sensors to accurately find bottles, follow-up filling, no stop in the production process, about 500ml capacity can fill 30-40 bottles per minute.
2. The traditional multi-head automatic filling machine is expensive, the bottle must be stopped during the production process, and the filling speed is slow.
B. Intelligent tuning
1. The follow-up high-speed filling machine can complete the debugging for bottles of different shapes, different heights, and different capacities in just a few minutes and enter the next wave of production. It completely solves the problems caused by a wide variety of products, a small number of single products, and frequent adjustments. Time-consuming and laborious problem.
2. The traditional automatic filling machine needs to be debugged repeatedly before it can be put into production again, which is time-consuming and labor-intensive, and it is not applicable to some special-shaped bottles at all.
In the dynamic landscape of industrial production, efficiency and precision are paramount. Our Automatic Follow-Up Type High-Speed Filling Machine stands as a testament to innovation, streamlining your production process with seamless precision and remarkable speed.
Designed to meet the demands of modern manufacturing, our filling machine embodies the pinnacle of automation technology. With a keen focus on enhancing productivity while maintaining the highest standards of quality, this machine redefines the paradigm of filling operations.
At the heart of our Automatic Follow-Up Type High-Speed Filling Machine lies its advanced automation features. Equipped with cutting-edge technology, it operates with unparalleled efficiency, ensuring consistent and accurate filling of various liquid products. Whether you’re dealing with beverages, pharmaceuticals, chemicals, or cosmetics, this machine adapts effortlessly to diverse production needs.
One of the standout features of our filling machine is its follow-up type mechanism. This innovative design allows for seamless transition between filling containers, minimizing downtime and maximizing output. With precise synchronization and intelligent control, the follow-up type mechanism ensures a continuous flow of production, optimizing efficiency and reducing operational costs.
Speed is of the essence in today’s fast-paced manufacturing environment, and our filling machine delivers on this front with flying colors. Capable of high-speed operation, it accelerates your production process without compromising on accuracy or reliability. Say goodbye to bottlenecks and delays – our machine empowers you to meet tight deadlines and fulfill customer orders with ease.
Moreover, our Automatic Follow-Up Type High-Speed Filling Machine is engineered for versatility. Adjustable filling parameters allow you to fine-tune the machine according to your specific requirements, whether it’s volume, viscosity, or container size. This flexibility ensures compatibility with a wide range of products and packaging formats, enabling you to cater to diverse market demands with confidence.
In addition to its performance capabilities, our filling machine prioritizes user convenience and safety. Intuitive controls and a user-friendly interface make operation effortless, while built-in safety features provide peace of mind during operation. With robust construction and rigorous quality control measures, our machine is built to withstand the rigors of continuous use, ensuring long-term reliability and durability.
Investing in our Automatic Follow-Up Type High-Speed Filling Machine isn’t just a purchase – it’s a strategic decision to elevate your production efficiency and stay ahead of the competition. Backed by our commitment to innovation and customer satisfaction, it’s a solution that delivers tangible results and drives business growth.
In conclusion, our Automatic Follow-Up Type High-Speed Filling Machine offers a winning combination of speed, precision, versatility, and reliability. With its advanced features and user-centric design, it’s the ideal choice for manufacturers looking to optimize their filling operations and stay ahead in today’s dynamic market landscape. Experience the future of filling technology – invest in our machine and unlock a world of possibilities for your business.
