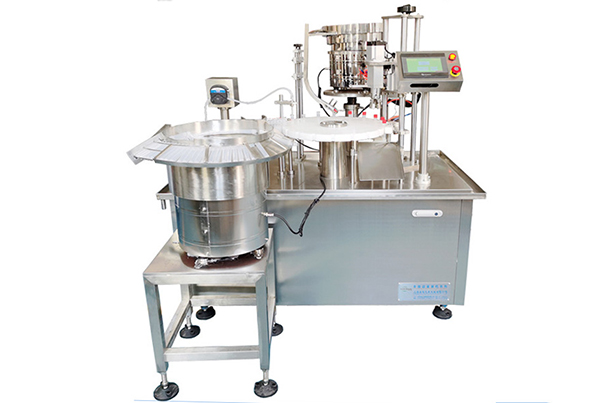

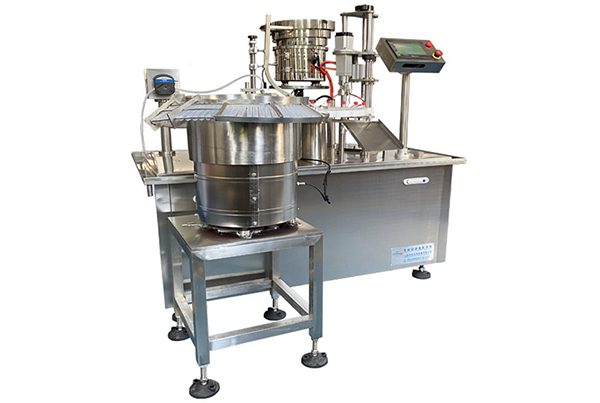

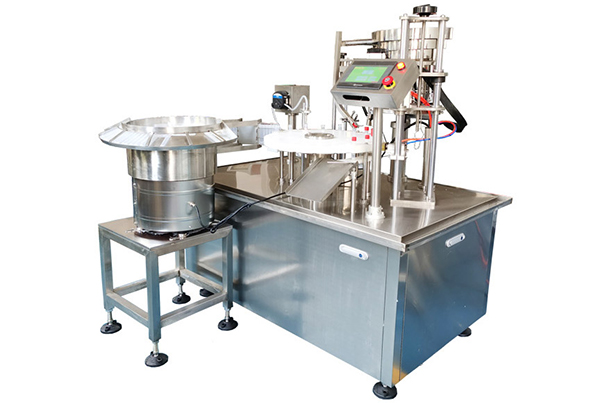

An automatic IVD reagent liquid tube filling and capping machine is a piece of equipment designed to automatically fill and cap tubes with a liquid reagent used in in vitro diagnostic (IVD) tests. These tests are performed outside of a living organism and are used to diagnose diseases and conditions. The machine is typically used in a laboratory or manufacturing setting to efficiently and accurately fill and seal tubes with the required amount of reagent.
The machine typically consists of a series of stations, each of which performs a specific task. The first station may be used to load the tubes onto the machine, while the second station is used to fill the tubes with the liquid reagent. The third station is used to cap the tubes, and the final station is used to unload the filled and sealed tubes.
The machine is typically controlled by a computer program, which allows the operator to set the filling and capping parameters and monitor the progress of the filling and capping process. The machine may also be equipped with sensors and other devices to ensure the accuracy and consistency of the filling and capping process.
Overall, an automatic IVD reagent liquid tube filling and capping machine can significantly improve the efficiency and accuracy of the reagent filling and capping process, reducing the risk of errors and increasing the speed of production.
Application:
Mainly used for tube and bottle packaging of liquids and pastes. For example, reagents, plastic test tubes, eye drops, e-liquids, essential oils and other small bottled products. Combination with other devices can achieve production line operation.
Kindly Reminder:
We have experienced team of R & D engineers who can customize packaging solutions according to your product characteristics.
Packaging Samples
| Model | QUA-LHT002 |
| Suitable for tube size | according to the sample provided by the customer, it can be customized |
| How to organize the pipes | manually place the pipes on the pipe-organizing machine |
| Out of the tube | according to the shape of the tube, actual customization |
| Filling method | 2 heads peristaltic pump filling |
| Filling capacity | 3ml~8ml |
| Output | about 2400 bottles/hour |
| The way to arrange the cap | automatic lid arrangement with vibration plate (double vibration plate) |
| Cap removal/cap removal method: | automatic cap removal, servo torque capping (double-head servo, torque capping) |
| Labeling | automatic positioning and labeling |
| Pipe-out method | the cylinder grabs the pipe and moves the pipe, and the pipe is discharged through the slope. |
| Program control | touch screen |
| Air pressure | 0.6-0.8MPa |
| Power | about 3KW/AC220V 50/60HZ |
1. This Automatic Reagent Filling Machine Reagent Tube Filling Capping Machine has adopted advanced technology. It has compact structure and is convenient to replace.
2. This Automatic Reagent Filling Machine Reagent Tube Filling Capping Machine is the main liquid filling production line, which complies with ‘GMP’ requirements. This machine adopts high-quality 304 stainless steel materials;
3. Advanced design and compact structure are features of the filling machine. Replacement is very convenient. Combination with other devices can achieve production line operation.
4. The operation of the machine is equipped with safety guarantees, fault alarms and other settings. The automatic operation of functions from pipe entry, filling, cap sorting, capping, capping, labeling, and collection, does not require manual intervention.
