Application:
It is recommended for a wide variety of products including lubricant oil, engine oil, paint, chocolate sauce, yogurt, petroleum jelly, vaseline, ketchup, tomato sauce, mayonnaise, paste, oil, cream, hot sauce, chili sauce, honey, etc.
Packaging Type: Bucket, Jar, Barrel, Bottles, Cans, Capsule, Cartons, Stand-up Pouch
Packaging Material: Glass, Metal, Paper, Plastic, Wood, Other
Kindly Reminder:
We have an experienced team of R & D engineers who can customize packaging solutions according to your product characteristics.
Packaging Samples
Machine Parameters:
| Filling Volume | 100ml-1000ml 250ml-2500ml 500ml-3000ml 500ml-5000ml | |||||
| Filling Material | lubricant oil, engine oil, paint, chocolate sauce, yogurt, petroleum jelly, vaseline, ketchup, tomato sauce, mayonnaise, paste, oil, cream, hot sauce, chili sauce, honey, etc. | |||||
| Filling nozzle | 2 | 4 | 6 | 8 | 10 | 12 |
| Capacity（B/H) | 800-1000 | 1500-1800 | 1800-2500 | 2500-3000 | 3000-3600 | 3600-4200 |
| Filling Precision | Less Than 0.5% | |||||
| Power supply | 220V Single phase 50HZ 380V Three phase 50HZ | |||||
Main Configuration:
Mesa, around the side plates are of high quality 304 stainless steel or other FDA approval of material production, and material contact parts for 316L quality stainless steel.
| Automatic Servo Filling Machine | ||||
| No. | Descriptions | BRAND | ITEM | Remark (made in China) |
| 1 | Servo Motor | Panasonic | 0.45KW | Japan |
| 2 | Reducer | Fenghua | ATF1205-15 | Taiwan |
| 3 | Conveyor Motor | ZhenYu | YZ2-8024 | China |
| 4 | servo drivers | Panasonic | LXM 23DU15M3X | Japan |
| 5 | PLC | Siemens | TM218LDALCODR4PHN | German |
| 6 | Touch Screen | Siemens | HMZGXU3500 | German |
| 7 | Frequency Converter | Danfoss | ATV12H075M2 | |
| 8 | Photo electricity of Inspect bottle | OPTEX or equal brand | BRF-N | Japan |
| 9 | Pneumatic Element | Airtac | Taiwan | |
| 10 | Rotary Valve | F07/F05 | No Need for Oil | |
| 11 | Pneumatic actuator | F07/F05 | No Need for Oil | |
| 12 | Low-Voltage Apparatus | Schneider | FRANCE | |
| 13 | proximity switch | ROKO | SC1204-N | Taiwan |
| 14 | Bearing | China | ||
| 15 | Lead Screw | TBI | Taiwan | |
| 16 | Butterfly valve | CHZNA | China | |

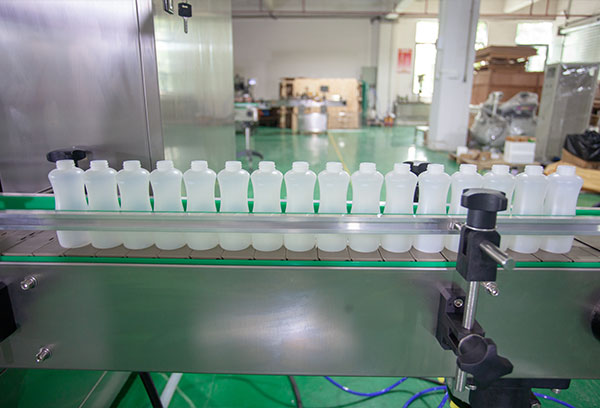

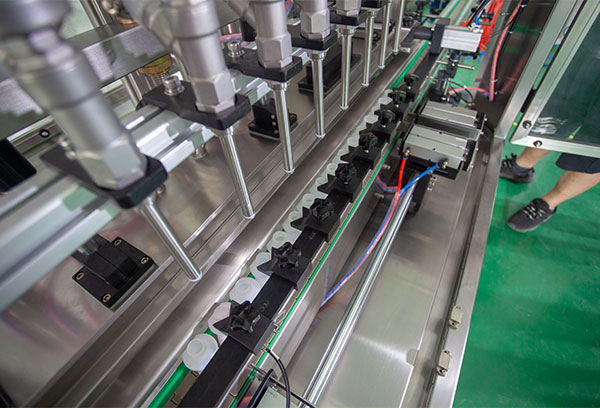

Bottle Filling Machine is adjustable for many different types of bottles.
Easy to maintain, no special tools are required.
No bottle, no filling, automatic PLC control.

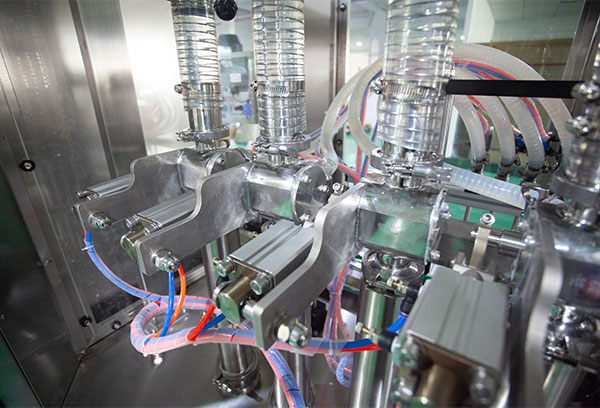

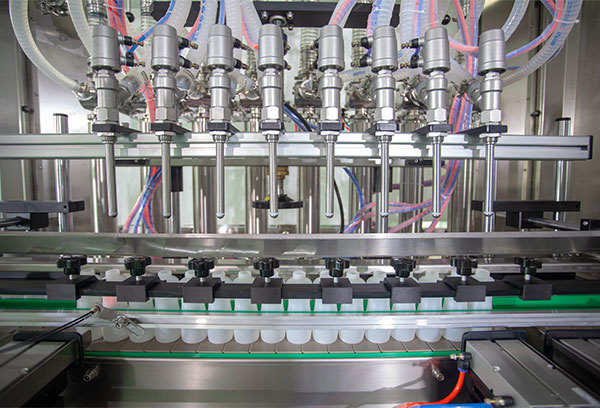

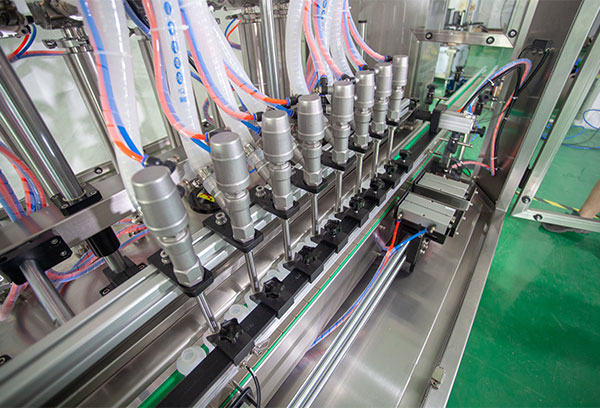

Filling nozzles are anti-drops, silk, and auto-cut viscous liquid.
Perfect filling precision: Less than 0.5%.
Special seals or hoses are adapted if the liquid is corrosive.
Diving nozzles for bottom-up filling of foaming products if needed.
The Automatic Lubricant Oil Filling Machine is a high-performance packaging equipment used for filling lubricant oil in bottles or containers in an automated manner. The machine is designed to improve the efficiency of lubricant oil packaging and reduce manual labor. It is widely used in various industries such as automotive, aviation, and manufacturing, among others.
The Automatic Lubricant Oil Filling Machine is equipped with advanced technology and components that ensure accurate filling and sealing of the containers. The machine has a user-friendly interface that allows for easy operation and monitoring of the filling process. It can fill a variety of container sizes and shapes, ranging from small bottles to large drums.
The machine has a high-speed filling capability, which significantly reduces production time and increases output. It also has a precision dosing system that ensures the correct amount of lubricant oil is dispensed into each container. The filling speed and dosage can be easily adjusted to meet the specific requirements of different lubricant oil products.
The Automatic Lubricant Oil Filling Machine is constructed with high-quality materials that ensure durability and reliability. The machine is easy to maintain and clean, reducing the risk of contamination and ensuring consistent product quality. The lubricant oil filling machine is also designed with safety features that prevent accidents and protect the operator.
In summary, the Automatic Lubricant Oil Filling Machine is a versatile, high-performance packaging equipment that can significantly improve the efficiency of lubricant oil packaging. Its advanced technology, precision dosing system, and user-friendly interface make it an ideal choice for various industries that require reliable and accurate lubricant oil filling equipment.
