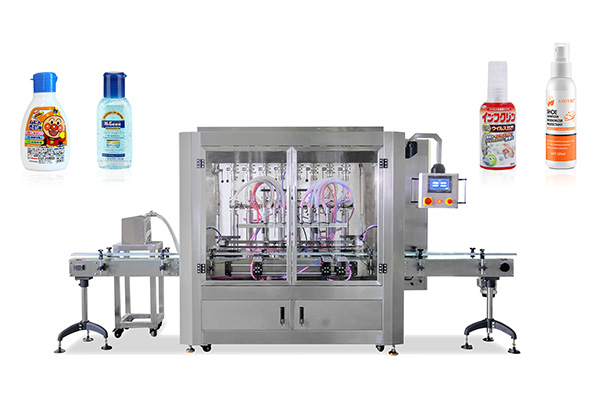

An automatic servo motor liquid bottle filling machine is a specialized piece of equipment designed to fill liquid products into bottles with high precision and efficiency. This machine is ideal for use in industries such as pharmaceuticals, cosmetics, and food and beverage, where accurate and consistent filling of liquid products is essential.

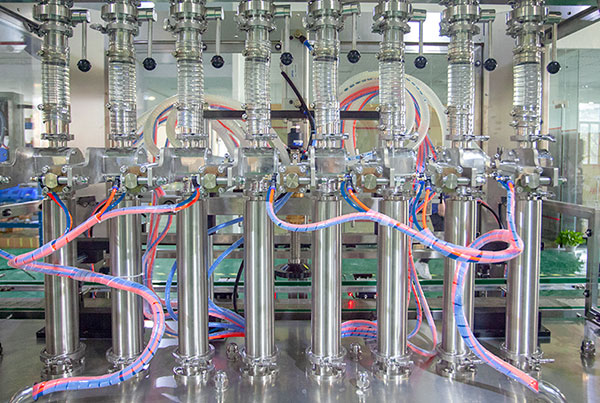

The machine consists of several components, including a filling head, a bottle feeding system, a conveyor system, and a control panel. The filling head dispenses the liquid product into the bottles with high accuracy, ensuring that each bottle is filled to the correct level.
The bottle feeding system uses a system of sensors and guides to ensure that the bottles are fed into the filling machine in the correct position and at the correct speed. The conveyor system transports the bottles through the machine, ensuring that they are filled and ejected at the correct time.

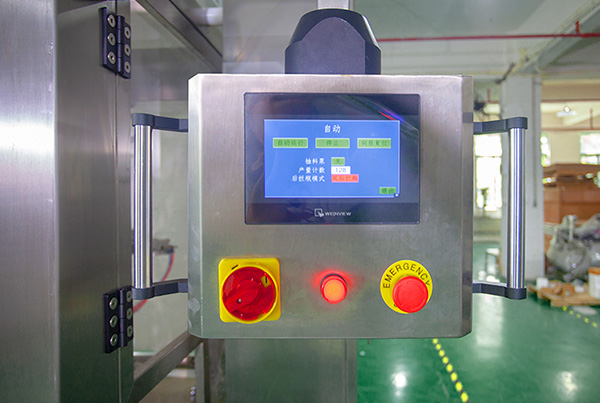

The control panel allows operators to adjust the machine’s settings and monitor its performance, ensuring that the filling process is running smoothly and efficiently. The machine can be programmed to fill different bottle sizes and shapes, making it versatile and adaptable to the needs of different production lines.
The automatic servo motor liquid bottle filling machine is designed for high efficiency, with the capacity to fill hundreds of bottles per minute. The machine is also easy to use and maintain, with all components easily accessible for cleaning and maintenance.
The servo motor technology used in this machine allows for precise control of the filling process, resulting in consistent and accurate fills. This technology also allows for the machine to automatically adjust to changes in the liquid viscosity, ensuring that the filling process remains accurate and efficient.
Overall, the automatic servo motor liquid bottle filling machine is an essential piece of equipment for industries that require the filling of liquid products into bottles. It provides a reliable and efficient solution for the accurate and consistent filling of liquid products, maintaining the quality and integrity of the product.
Application:
Automatic servo motor Liquid bottle filling machine from QUALIPAK can fill up to 16 containers at the same time with virtually any liquid product, from thin and foamy to thick and stringy. It is recommended for a wide variety of products including cosmetics, personal care, food and beverages, chemicals, pharmaceuticals, and more.
Examples: Water, solvents, alcohol, specialty chemicals, paint, inks, and corrosive chemicals i.e. acids and bleach.
Packaging Type: Barrel, Bottles, Cans, Capsule, Cartons, Stand-up Pouch
Packaging Material: Glass, Metal, Paper, Plastic, Wood, And Others
Kindly Reminder:
We have an experienced team of R & D engineers who can customize packaging solutions according to your product characteristics.
Packaging Samples:
Machine Parameters:
| Filling Volume | 100ml-1000ml 250ml-2500ml 500ml-3000ml 500ml-5000ml | |||||
| Filling Material | Shampoo, Lotion, Cooking oil, Lube oil, Detergent liquid, Hair oil, Honey, Sauce, and so on | |||||
| Filling nozzle | 2 | 4 | 6 | 8 | 10 | 12 |
| Capacity（B/H) | 800-1000 | 1500-1800 | 1800-2500 | 2500-3000 | 3000-3600 | 3600-4200 |
| Filling Precision | Less Than 0.5% | |||||
| Power supply | 220V Single phase 50HZ 380V Three phase 50HZ | |||||
Main Configuration:
Mesa, around the side plates are of high quality 304 stainless steel or other FDA approval of material production, and material contact parts for 316L quality stainless steel.
| Automatic Servo Filling Machine | ||||
| No. | Descriptions | BRAND | ITEM | Remark (made in China) |
| 1 | Servo Motor | Panasonic | 0.45KW | Japan |
| 2 | Reducer | Fenghua | ATF1205-15 | Taiwan |
| 3 | Conveyor Motor | ZhenYu | YZ2-8024 | China |
| 4 | servo drivers | Panasonic | LXM 23DU15M3X | Japan |
| 5 | PLC | Siemens | TM218LDALCODR4PHN | German |
| 6 | Touch Screen | Siemens | HMZGXU3500 | German |
| 7 | Frequency Converter | Danfoss | ATV12H075M2 | |
| 8 | Photo electricity of Inspect bottle | OPTEX or equal brand | BRF-N | Japan |
| 9 | Pneumatic Element | Airtac | Taiwan | |
| 10 | Rotary Valve | F07/F05 | No Need for Oil | |
| 11 | Pneumatic actuator | F07/F05 | No Need for Oil | |
| 12 | Low-Voltage Apparatus | Schneider | FRANCE | |
| 13 | proximity switch | ROKO | SC1204-N | Taiwan |
| 14 | Bearing | China | ||
| 15 | Lead Screw | TBI | Taiwan | |
| 16 | Butterfly valve | CHZNA | China | |
Bottle Filling Machine is adjustable for many different types of bottles.
Easy to maintain, no special tools are required.
No bottle, no filling, automatic PLC control.

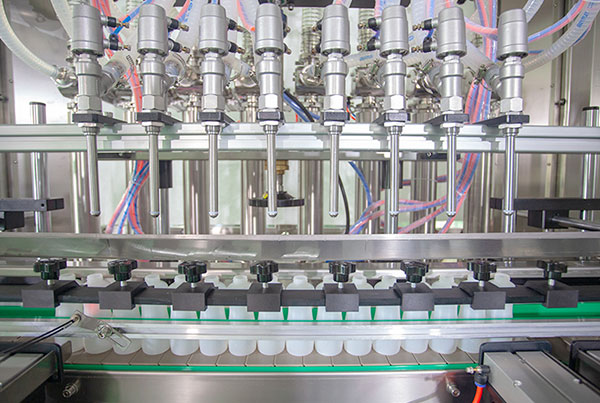

Filling nozzles are anti-drops, silk, and auto-cut viscous liquid.
Perfect filling precision: Less than 0.5%.
Special seals or hoses are adapted if the liquid is corrosive.
Diving nozzles for bottom-up filling of foaming products if needed.
