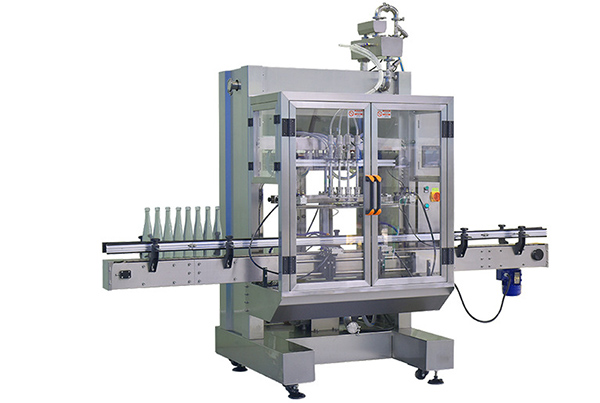

A multifunctional bubbling liquid bottle filling machine is a type of packaging equipment that is used to fill bottles with liquid products that contain bubbles or foam, such as carbonated beverages or cleaning solutions. These machines typically use a combination of gravity and pressure to fill the bottles with the bubbling liquid, and may include features such as automatic liquid level control, adjustable filling speed, and automatic bottle positioning and alignment. Some multifunctional bubbling liquid bottle filling machines can also be used for capping and labeling bottles after they have been filled.
Application:
Multifunctional bubbling liquid bottle filling machine, Suitable for filling all kinds of liquids that are easy to bubble, such as all kinds of alcohol, oral liquid, soy sauce, vinegar, etc.
Packaging Type:
Round bottles, square bottles, hexagonal bottles, special-shaped bottles, glass bottles of various shapes, composite bottles, etc.
Kindly Reminder:
We have an experienced team of R & D engineers who can customize packaging solutions according to your product characteristics.
Packaging Samples:
| Single Head | 4-6 heads | 8-10 heads | 12 heads | |
| Filling Speed | 800 Bottles/hour | 1800-2500 Bottles/hour | 3000-3500 Bottles/hour | 4000 Bottles/hour |
| Quantitative Error | ±1.5mm | |||
| Measuring Range | 50-500mm、500-2500mm、1000-5000mm (Customizable) | |||
| Operating Voltage | 380220V (Customizable) 50Hz | |||
| Working Pressure | 0.6-0.8 Mpa | |||
| Material Box Capacity | 90KG | 120KG | 180KG | 260KG |
| Dimensions (length * width * height unit: mm) | 800*1500*1600 | 1600*1600*2200 | 2000*1800*2200 | 2300*1800*2300 |
| Machine Weight | 423KG | 1156KG | 1291KG | 1635KG |
1. The equipment is compatible with 5 types of bottles, no need to change accessories. Such as various round bottles, square bottles, hexagonal bottles, octagonal bottles, special-shaped bottles, and so on. It is suitable for 3 kinds of conventional capacity: 50-500ml, 500-2500ml, and 1-5L. Special capacity can also be customized.

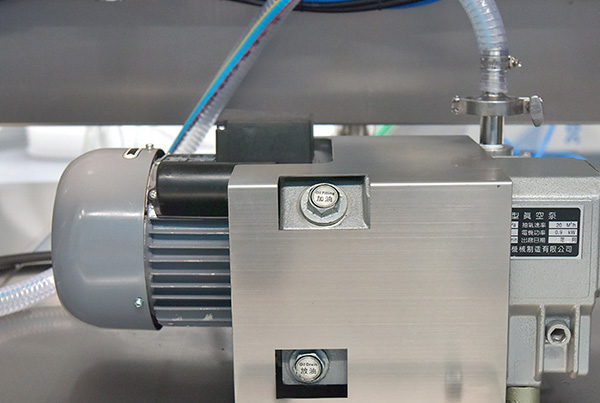

2. The equipment is equipped with two modes of quantitative filling and fixed-level filling. These two modes only need one key to switch. Quantitative filling: ensure that the volume of each bottle is the same; fixed liquid level filling, so that the liquid level of each bottle is flush, and the liquid level will not be uneven due to the difference in the wall thickness of the glass bottle. When the fixed liquid level filling method is adopted, the equipment is filled to the set liquid level line, and then a vacuum recovery pump is used to recover more materials.
3. The switching of filling materials is completed in 9 minutes, which is fast and good. The equipment is equipped with a 7-inch color touch screen, and the system has its own cleaning function. It can switch filling materials with one button to meet the needs of customers for multiple types of filling and realize easy material change.
